Eye Bolts Expanding Anchor M6 Sleeved (Netting Corner Fixing)

• Sleeved eye bolt for permanent fixing into masonry
• These corner fixings are designed to take the majority of the strain imposed by the barrel strainers
• Compatible with our 2mm and 3mm diameter steel wire rope

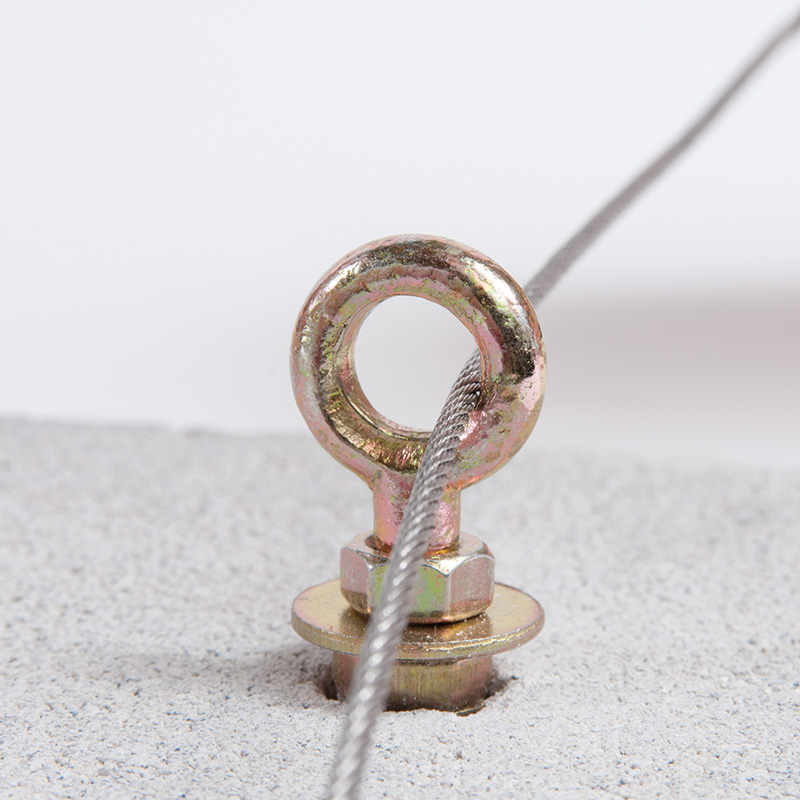

NF147 Netting Corner Eye Bolt M6 Yellow Passivated:

• M6 Shield sleeve 50mm long
• 10mm internal diameter forged eye fitting.
• Shield anchor requires a 12mm diameter hole in the masonry
• Yellow passivated shield, bright zinc plated eye..

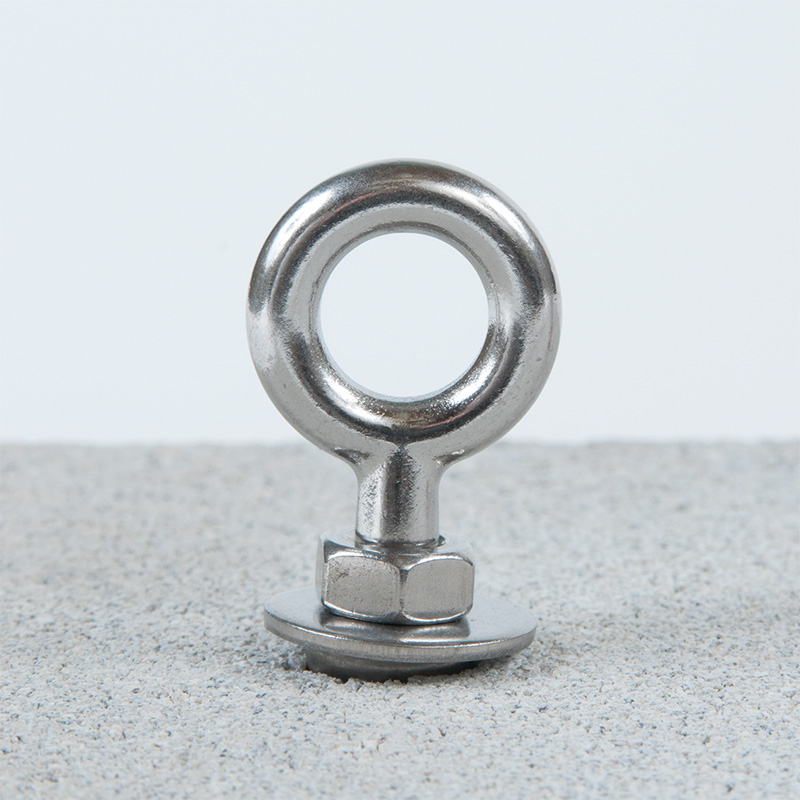

NF145 Netting Corner Eye Bolt M6 Stainless Steel:

• M6 Shield sleeve 50mm long
• 12mm internal diameter forged eye fitting.
• Shield anchor requires a 10mm diameter hole in the masonry
• 304 Stainless Steel..

Use one on each corner, every 10 metres of wire and for securing cross wires. If using 19mm bird netting use one at least every 5m

Technical Specifications SS
